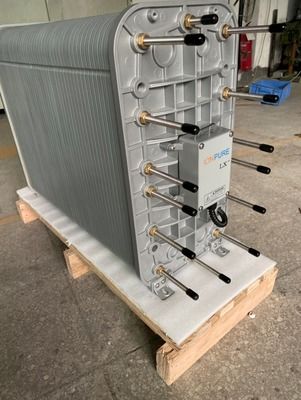

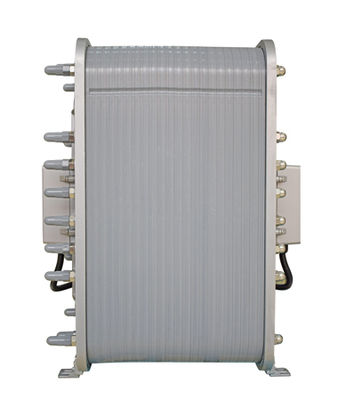

Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry

• Superior electrical insulation performance
• Double O-ring seal ensures leak-free operation
• Operating costs significantly lower than traditional ion exchange
• No acid, alkali, neutralization system or resin tank required
• Continuous operation at 7bar (100psi), 45C (113F)
• Patented "full-filled" concentrate chamber eliminates need for salt addition
• Produces water quality equal to or better than mixed bed water
• Continuous water production with stable quality

The EDI membrane block removes ions through built-in ion exchange resin (Na+ represents cations and C1- represents anions). The system consists of:

• Pure water chamber - mixed resin layer between anion and cation exchange membranes
• Concentrated water chamber - working interlayer between pure water chambers
• Electrode plates - conductive plates generating electric field during operation

• Solar photovoltaic industry: pure/ultrapure water for silicon processing
• Electronics industry: ultrapure water for semiconductor manufacturing
• Biopharmaceutical industry: GMP-compliant water for production
• Chemical industry: process water for chemical production
• Power industry: boiler feed water and ultrapure water

• Wide flow range from 0.22 m3/h (1 gpm) to 10m3/h (44 gpm) per module
• Lower operating costs than conventional ion exchange
• Chemical-free mixed-bed quality deionized water
• Continuous production with consistent quality
• NSF® 14 and NSF® 61 compliant materials

CE mark certified, each module undergoes strict factory testing to meet industry standards. Manufactured under ISO 9001 and ISO 14000 quality and environmental management systems.

Install indoors away from direct sunlight. Ambient temperature must not exceed 113°F (45°C) for stable operation and extended service life.

FG Water Technologies (www.fgwater.com) is part of Wuxi Fenigal Science and Technology Co. Ltd., specializing in water treatment equipment design, manufacturing, and international shipment. Our products include:

• Reverse osmosis systems (SWRO/BWRO)
• Ultrafiltration (UF) systems
• Electrodeionization (EDI) equipment
• Media pressure filters and ion exchange softeners

We serve industries worldwide including food & beverage, pharmaceutical, chemical, power, and wastewater treatment.
