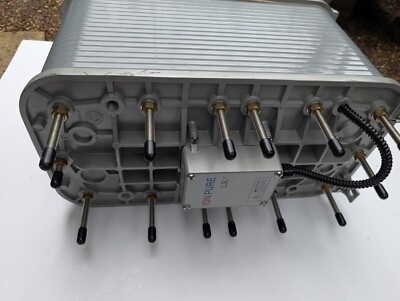

Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water

Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water

  • Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water
  • Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water
  • Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water
Dettagli:
Place of Origin: China
Marca: IONPURE
Certificazione: CE
Model Number: IP-LXM18Z-5
Documento: fgwater-ionpure-lxz-ds.pdf
Termini di pagamento e spedizione:
Minimum Order Quantity: 1 pc
Prezzo: Negoziabile
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Termini di pagamento: T/T, Western Union
Supply Ability: 60000 Units per Month
Contatto
Tutti i prodotti
scatola di distribuzione di illuminazione (33)
scatola di distribuzione elettrica (33)
Scatola di distribuzione resistente alle intemperie (48)
Scatola di recinzione della vetroresina (60)
Commutatore automatico di trasferimento del ATS (68)
Moduli EDI (139)
Moduli a membrana ad ultrafiltrazione (62)
interruttore industriale (85)
sistema solare di pv (72)
Stazione di carico elettrica di EV (21)
Relè modulari di sincronizzazione (12)
Relè di controllo di automazione (64)
Trasformatore del regolatore di tensione (16)
Palloni di illuminazione del film (136)
Luce del pallone della luna (131)
Palloni del treppiede LED (115)
Torre del faro gonfiabile (62)
Accessori del blocchetto terminali (6)
Descrizione di prodotto dettagliata
18Z-5 Minimum Flow Rate m3/hr (gpm): 1.02 (4.5) 18Z-5 Design Flow Rate m3/hr (gpm): 2.0-3.1 (9.0-13.5)
18Z-5 Shipping Weight kg (lbs)**: 99 (217) 18Z-5 Operating Weight kg (lbs): 74 (163)
Recupero 18Z-5: 90 ‰ 95% Stack Advantages: Wide Range Of Flow,Low Operating Costs,Super Strong Electrical Insulation
Stack DC Voltage: 0–400 Stack DC Amperage: 1.0–6.0
Application: Industrial Applications
Evidenziare:

Industrial EDI module for ultrapure water

,

Ionpure CEDI LX-Z EDI module

,

EDI module with IP-LXM18Z-5 model

Ionpure CEDI LX-Z IP-LXM18Z-5 High-Flow, Chemical-Free For Ultrapure Water Production
Product Overview
The Ionpure CEDI LX-Z IP-LXM18Z-5 is an industrial-grade electrodeionization module engineered to deliver ultrapure water with resistivity up to seventeen megohm-centimeters without chemical regeneration. Utilizing Ionpure's patented continuous electro-deionization (CEDI) technology, it replaces conventional mixed-bed ion exchange systems, offering zero chemical consumption, minimal operational costs, and uninterrupted twenty-four-hour operation for critical industrial processes.
Key Features
  • Chemical-Free Operation: Eliminates acid/alkali consumption and neutralization systems, reducing hazardous waste and operational costs by over sixty percent compared to traditional ion exchange.
  • High-Efficiency Performance: Ninety to ninety-five percent recovery rate minimizes wastewater generation. Silica removal efficiency: ninety to ninety-nine percent (dependent on feed conditions).
  • Robust Engineering: Dual O-ring seals guarantee leak-free operation at pressures up to seven bar (one hundred psi). Enhanced electrical insulation prevents current leakage.
  • Plug-and-Play Integration: Pre-installed junction box and standardized CPVC spacers enable rapid deployment in new or retrofit systems.
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 0
Technical Specifications
Attribute Value
Minimum Flow Rate (m3/hr/gpm) 1.02 (4.5)
Design Flow Rate (m3/hr/gpm) 2.0-3.1 (9.0-13.5)
Shipping Weight (kg/lbs) 99 (217)
Operating Weight (kg/lbs) 74 (163)
Recovery Rate 90–95%
Stack DC Voltage 0–400
Stack DC Amperage 1.0–6.0
Primary Application Industrial Processes
Quality Assurance
CE mark certified, each module undergoes strict factory testing to meet industry standards. Manufactured in compliance with ISO 9001 and ISO 14000 quality and environmental management systems.
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 1
Operating Environment
For optimal performance, install indoors away from direct sunlight. Ambient temperature should not exceed 113°F (45°C) to ensure stable operation and extend service life.
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 2
Performance Data
Parameter Value
Product Water Resistivity Minimum Flow > 17 MW-cm*
Maximum Flow > 7 MW-cm*
Silica (SiO2) Removal 90-99% (feed dependent)
*Actual performance can be estimated using the IP-Pro prediction tool. Data based on testing at maximum inlet water conductivity (40 μS/cm).
Feed Water Requirements
Parameter Specification
Conductivity < 40 μS/cm
Source RO permeate
Temperature 5-45˚C (41-113˚F)
Total Chlorine < 0.05 ppm
Iron/Manganese < 0.01 ppm
Total Hardness < 1.0 ppm
Physical Dimensions
Model Length (mm/in) Width (mm/in)
LXM18Z 488.2 mm (19.22") 353.8 mm (13.93")
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 3
Industry Applications
Successfully implemented in power generation, petroleum refining, chemical processing, steel production, pharmaceuticals, and electronics manufacturing.
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 4
For detailed application cases, visit: www.fgwater.com/Industries/
